MTN轮胎式移动破碎筛分站

进料粒度≤800mm
生产能力50-300t/h

产品简介：轮胎移动破是本着物料“接近处理”的原则，而开发推出的岩石及建筑垃圾破碎设备。设计采用轮胎式移动方式，车载底盘高，转弯半径小，便于普通公路行驶，更便于在破碎场区崎岖恶劣的道路环境中行驶。

适用物料：建筑垃圾处理，混凝土废料、土渣、花岗岩，玄武岩，水泥熟料，石英石，金刚砂，矿砂，铁矿石，铝钒土等。

咨询优惠报价免费定制方案

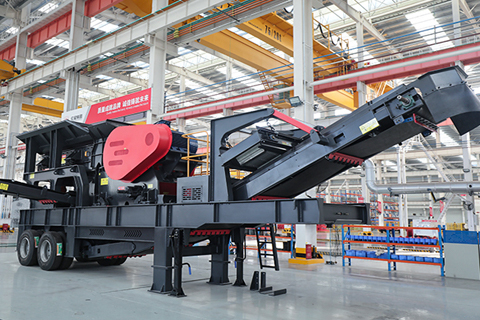

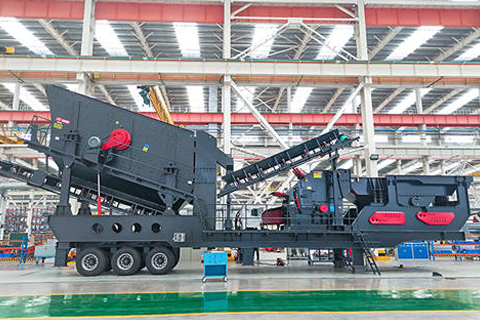

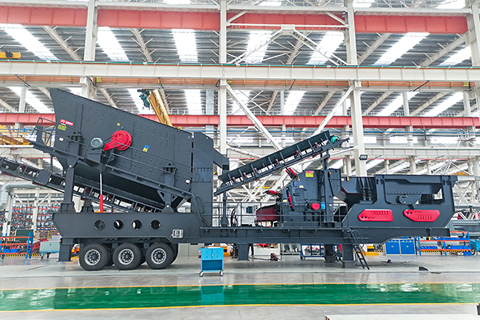

产品实拍展示

种类多样满足您的各种需求

技术参数

产量根据不同物料，进料粒度等因素其结果将有所不同

系列	标准型号	车载设备	车载设备	处理量(t/h)	运输尺寸(mm)
四组合移动站	MTN100Y-2	GZD850X3000/2YK1545	HD72/GYS300	50-100	15000x2650x4500
	MTN100Y-3	GZDT0835/3HX1548	HDX86/SC100F1	50-100	17500x2500x4000
	MTN150Y-3	GZDT0835/3HX1548	HDX86/SC160F1	70-150	17500x2500x4000
	MTN150R-3	GZDT0835/3HX1548	HDX86/CI1110	60-150	17500x2500x4000
粗碎移动站	MTN96	GZDT9538	CJ96	70-200	13000x2950x4250
	MTN98	GZDT9538	HDX98	80-200	13000x2950x4250
	MTN106	GZDT1145A	CJ106	90-300	14000x3000x4400
	MTN110	GZDT1145A	HDX110	120-300	14000x3000x4400
	MTN1213C	GZDT9538	CI1213	80-200	13000x2950x4250
	MTN1316C	GZDT1145A	CI1316	100-300	14000x3000x4400
中细碎移动站	MTN300	-	HPM300C1	100-200	15500x2900x4200
	MTN400	-	HPM400C3	150-300	16500x3100x4300
	MTN250	-	SC250F1	90-200	16500x3100x4300
	MTN1213	-	CI1213	80-200	16000x2900x4300
	MTN1316	-	CI1316	100-300	16500x3100x4500
	MTN0926	-	HVI0926	85-200	16500x3100x4300
	MTN1040	-	HVI1040	120-300	16500x3100x4400
筛分移动站	MTN1865-3	-	3HX1865	65-200	14500x2900x4000
筛分移动站	MTN2165-3	-	3HX2165	85-300	15000x2900x4400
中细碎筛分移动站	MTN300S-3SII	3HX1865	HPM300C1	100-200	15000x3000x4000
	MTN300S-3	3HX2165	HPM300C1	100-200	15000x3000x4000
	MTN400S-3	3HX2165	HPM400C3	150-300	15000x3000x4000
	MTNG400S-3SII	3HX1865	GYS400C1	100-200	15000x3000x4000
	MTNG400S-3	3HX2165	GYS400C1	100-200	15000x3000x4000
	MTN250S-3	3HX2165	SC250F1	90-200	15000x3000x4200
	MTN1213S-3	3HX1865	CI1213	80-200	15000x3000x4200
	MTN1316S-3	3HX2165	CI1316	100-300	15000x3000x4200
	MTN0926S-2	2HX1865	HVI0926	85-200	18000x3000x4200
	MTN1040S-2	2HX2165	HVI1040	120-300	18000x3000x4200
三组合移动站	MTN1213-III	GZDT9538/3HX1865	CI1213	80-200	18200x2800x4350
	MTN1316-III	GZDT1145A/3HX2165	CI1316	100-300	18200x3000x4200
	MTN1410-III	GZDT9538/3HX1865	PCZ1410	80-200	18200x2800x4200
	MTN1612-III	GZDT1145A/3HX2165	PCZ1612	100-300	18200x3000x4200

注：产量根据不同物料，进料粒度等因素其结果将有所不同

系列	标准型号	处理量 (t/h)	运输尺寸 (mm)
四组合移动站	MTN100Y-2	50-100	15000x2650x4500
	MTN100Y-3	50-100	17500x2500x4000
	MTN150Y-3	70-150	17500x2500x4000
	MTN150R-3	60-150	17500x2500x4000
粗碎移动站	MTN96	70-200	13000x2950x4250
	MTN98	80-200	13000x2950x4250
	MTN106	90-300	14000x3000x4400
	MTN110	120-300	14000x3000x4400
	MTN1213C	80-200	13000x2950x4250
	MTN1316C	100-300	14000x3000x4400
中细碎移动站	MTN300	100-200	15500x2900x4200
	MTN400	150-300	16500x3100x4300
	MTN250	90-200	16500x3100x4300
	MTN1213	80-200	16000x2900x4300
	MTN1316	100-300	16500x3100x4500
	MTN0926	85-200	16500x3100x4300
	MTN1040	120-300	16500x3100x4400
筛分移动站	MTN1865-3	65-200	14500x2900x4000
筛分移动站	MTN2165-3	85-300	15000x2900x4400
中细碎筛分移动站	MTN300S-3SII	100-200	15000x3000x4000
	MTN300S-3	100-200	15000x3000x4000
	MTN400S-3	150-300	15000x3000x4000
	MTNG400S-3SII	100-200	15000x3000x4000
	MTNG400S-3	100-200	15000x3000x4000
	MTN250S-3	90-200	15000x3000x4200
	MTN1213S-3	80-200	15000x3000x4200
	MTN1316S-3	100-300	15000x3000x4200
	MTN0926S-2	85-200	18000x3000x4200
	MTN1040S-2	120-300	18000x3000x4200
三组合移动站	MTN1213-III	80-200	18200x2800x4350
	MTN1316-III	100-300	18200x3000x4200
	MTN1410-III	80-200	18200x2800x4200
	MTN1612-III	100-300	18200x3000x4200
